Thread 152mm 216mm PDC Concave Drilling Bits Water Well for Oil Drilling in Stock
- Product ID: Oil Drill Tools Accessories
- Whatsapp:
- Phone: +8618998453346
- Tel: +8618998453346
- Email: [email protected]
- Time: 2022-09-17 12:05
- FEEDBACK

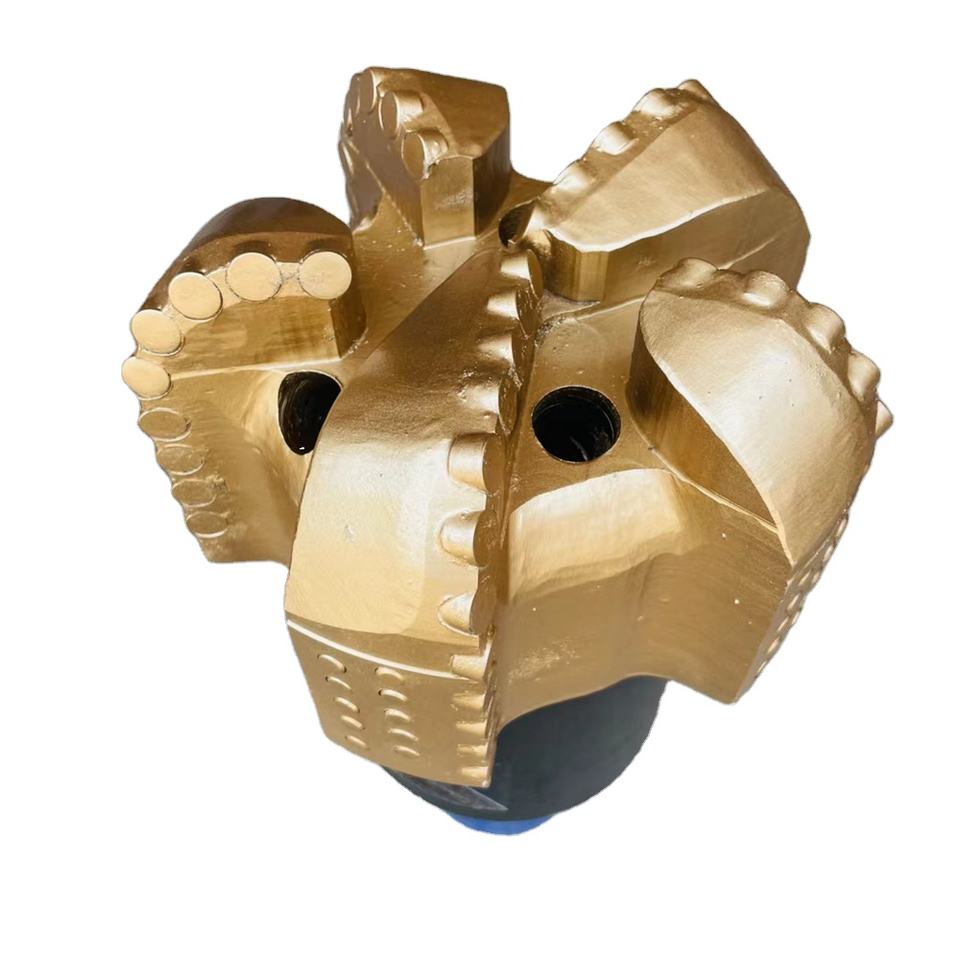

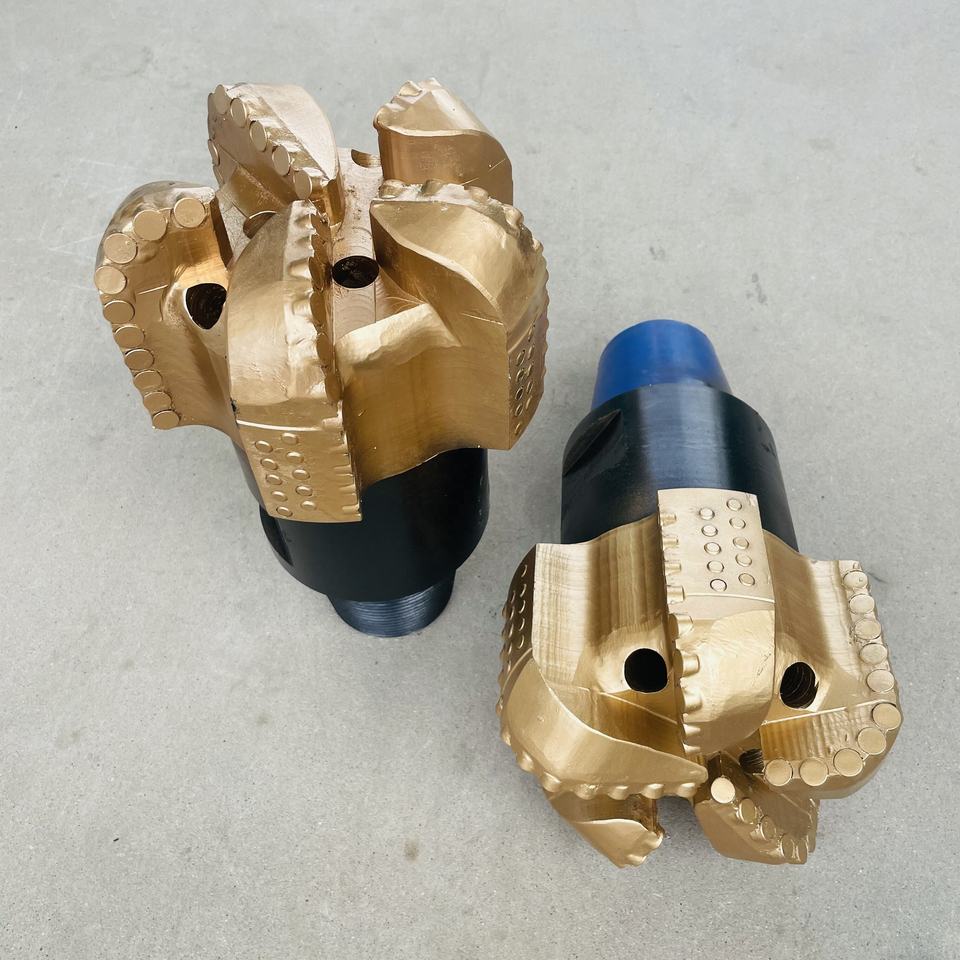

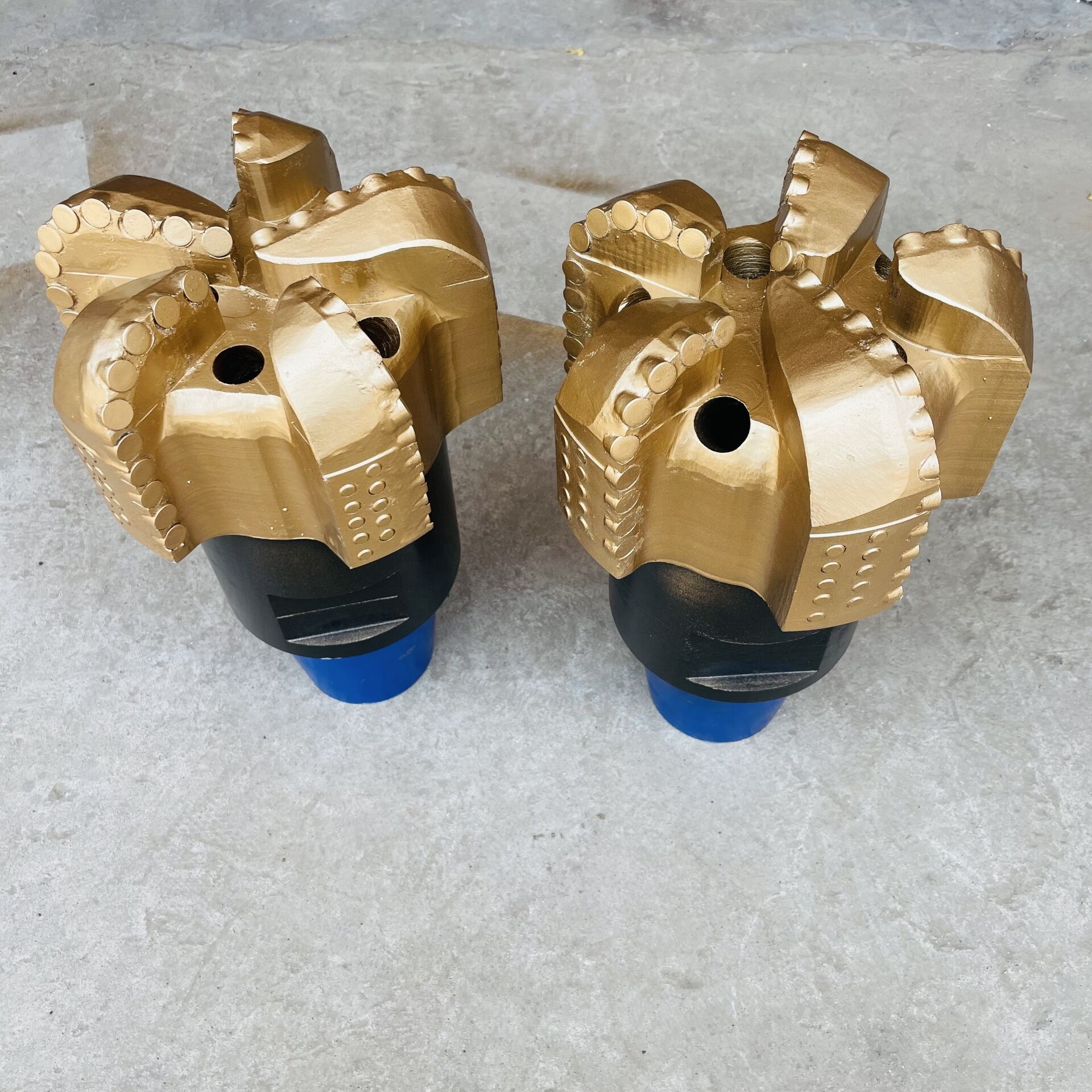

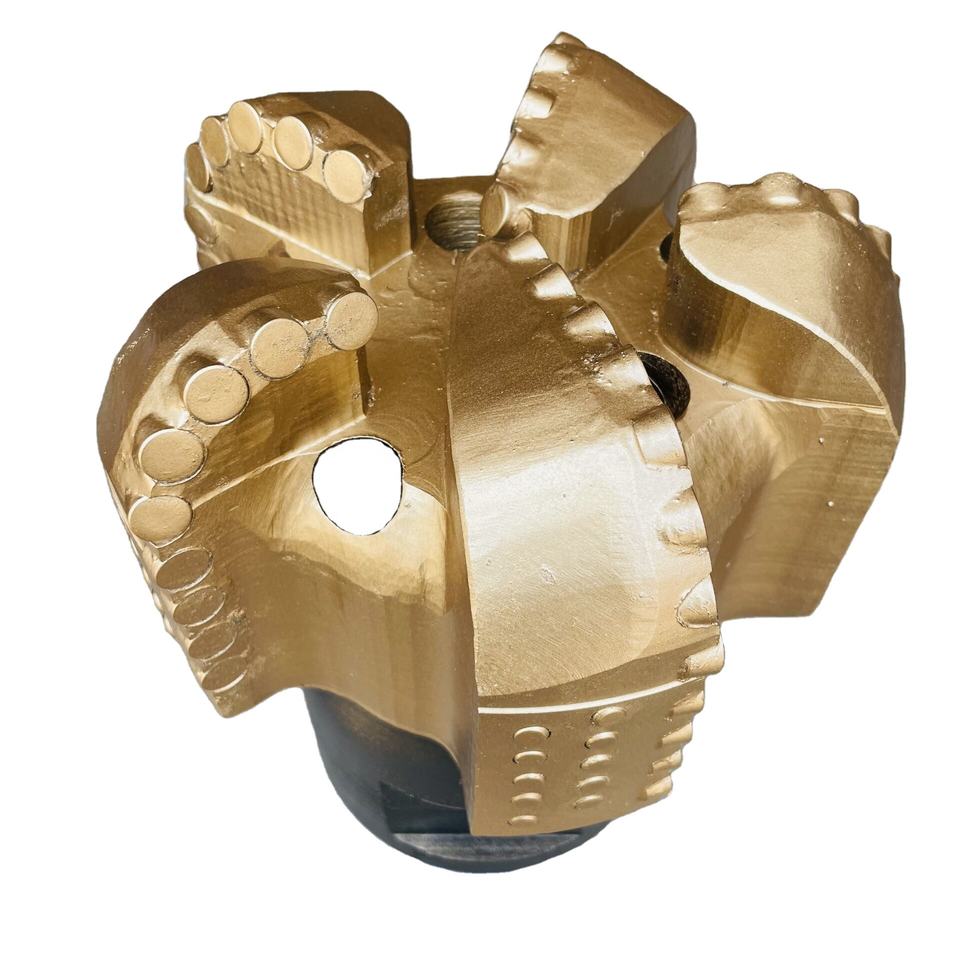

PDC Round Blade Bit is made from PDC cutter brazed to Steel Body. You can judge from the appearance that they look like Oil PDC Bit, but PDC round blade bits are mainly used for geology drilling. It has similar cutting structure with Oil PDC Bit. Its living life is 20 - 40 times and its drilling efficiency is 50% higher than tungsten carbide drill bit. Suitable for drilling medium to hard formations.
Specifications:
Standard Sizes for Immediate Availability: 3" to 12 1/4" (76mm to 311mm)
Other sizes available upon request
Diameter | Wings | |
mm | inch | |
76 | 3” | 3 |
89 | 3 1/2” | 3 |
92 | 3 5/8” | 3 / 4 |
95 | 3 3/4” | 3 / 4 |
98 | 3 7/8” | 3 / 4 |
102 | 4” | 3 / 4 |
108 | 4 1/4” | 3 / 4 |
114 | 4 1/2” | 3 / 4 |
127 | 5” | 3 / 4 |
133 | 5 1/4” | 3 / 4 |
146 | 5 3/4” | 3 / 4 |
152 | 6” | 3 / 4 |
171 | 6 3/4” | 3 / 4 / 5 |
191 | 7 1/2” | 3 / 4 / 5 |
216 | 8 1/2” | 4 / 5 / 6 |
223 | 8 3/4” | 4 / 5 / 6 |
251 | 9 7/8” | |
311 | 12 1/4” | 4 / 5 / 6 |
Feature:
1. PDC cutters for high speed drilling;
2. All cutters are premium grade for extended bit life and durability;
3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl;
4. Large junk slots and flushing ports;
5. Advanced geometric design for faster penetration.
6. Gauge pads have tungsten carbide inserts for maximum wear resistance
